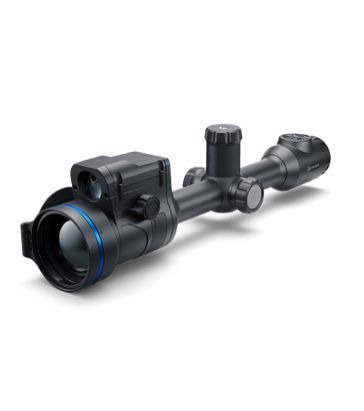

PULSAR THERMION 2 LRF XP60
SKU 840284902085
$7 479.97
In stock: 1 available
Product Details
Brand: Pulsar
With the highest thermal sensitivity, the Pulsar Thermion 2 LRF XP60 is the best-performing riflescope in humid conditions.
MAIN SPECIFICATIONS
Sensor
@ 17 µm 640х480
Objective lens
F60/1.1
Magnification, x
3 - 24
FOV (HxV), degrees
10.4
FOV (HxV), m@100m
18.1
Detection range
2000 m
RETICLE
Click range, H/V, mm at 100m
2840 / 2840
Click value, H/V, mm at 100m
14 mm - 3x, 7 mm - 6x, 3.5 mm - 12 x, 1.75 mm - 24x
Number of preloaded reticles
10
SENSOR
Type
uncooled
Resolution, pixels
640х480
Pixel pitch, µm
17
Sensor NETD, mK
< 25
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
System NETD, mK
< 18
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
Frame rate, Hz
50
OPTICS
Objective lens
F60/1.1
Magnification, x
3 - 24
FOV (HxV), degrees
10.4
FOV (HxV), m@100m
18.1
Eye relief, mm
65
DISPLAY
Type
Micro-OLED
Resolution, pixels
2560x2560
LASER RANGEFINDER
Max. measuring range, m
800
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1280x960
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
BLUETOOTH
Wireless protocol
BLE 4.2
Wireless standard
IEEE 802.15.1
Frequency, Ghz
2,4
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
CONNECTIONS AND COMPATIBILITIES
Compatible mounts
Standard 30 mm rings
Supported application
Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber
12
Max. recoil power on rifled weapon (Eo), Joules
6000
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4900 mAh / DC 3.7 V (built-in)
Capacity, mAh
3200 (removable) + 4900 (built-in)
Operating time on battery pack, hat t=22°С
11
External power supply, V
5V (USB type-C)
WEIGHT & SIZE
Body material
Aluminum alloy
Dimensions, mm
442x84x98
Weight, kg
1.2
SKU
76576
Always-on video, even when you forget to press Record
With Recoil-Activated Video Recording, you never have to worry about missing the shot. Once enabled, the device automatically detects recoil and saves the recording for you. Each clip begins 30 seconds before the shot and continues for 30 seconds after. Fire multiple shots, and the device captures the entire sequence – from 30 seconds before the first to 30 seconds after the last.
With Shadow Recording, your device automatically saves footage starting 30 seconds before you press the REC button – so you never miss a crucial moment. You can enable this feature quickly through the main menu.
Premium HD-class optics
The top-class optics of the Pulsar Thermion 2 LRF series are designed for maximum image detail. The 60 mm lenses capture the smallest heat signals, while the 60 mm optics in the Thermion 2 LRF 60 are designed for long-range application.
High Definition Thermal Sensor
Sharp, richly contrasted thermal imaging is used for enhanced identification of animals, their extremities, and even the smallest details, i.e., branches, leaves, grass, and terrain.
Extreme image detail on high zoom
Variable magnification improves focus and overall object recognition at significant distances. The HD resolution models, the Thermion 2 LRF XL50 and Thermion 2 LRF XL60, maintain the highest level of image detail across the entire magnification range. The zoom changes either gradually in a 2x step or continuously for a customized FOV / magnification ratio for each specific scenario.
Precise laser range finding
Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder, with a range of up to 800 metres, is seamlessly integrated into a slim-design riflescope. The receiver and emitter are within the clearance limits of a single optical channel.
Integrated ballistic calculator for long-range shooting
The Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder gives the hunter a precise distance to the target. At the same time, the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment, upload it to the Thermion’s memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF into a highly accurate and efficient long-range aiming tool.
Wide field of view for easy scanning
The Thermion 2 LRF series allows you to choose the best field of view for your application. From 7.3 ° in the Thermion 2 LRF XG60 and 14 ° in the XL50 models, you’re sure to find the best FOV and magnification ratio for your needs.
Clear wide-angle eyepiece
The Pulsar Thermion 2 LRF 60 comes with an upgraded wide-angle eyepiece. The new optics are optimized specifically for use with high-resolution micro-displays, ensuring a clearer view and more comfortable observation with the 8 mm exit pupil.
Highest eye relief in class: 65 mm
Designed for long-range use, the Pulsar Thermion 2 LRF 60 line is also safe to use with high-calibre ammunition. The 65 mm eye relief is the highest in its class, ensuring both enhanced safety and flawless screen visualization.
High-precision ambidextrous lens focusing
An objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy for either left—or right-handed users.
Wireless remote control included
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions while rotating or pressing the encoder, operating fine adjustment and menu navigation. The buttons and encoder’s design, size and positioning are customized for use with both bare and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
- Applicable to Thermion 2 LRF XL50 and Thermion 2 LRF 60 models.
