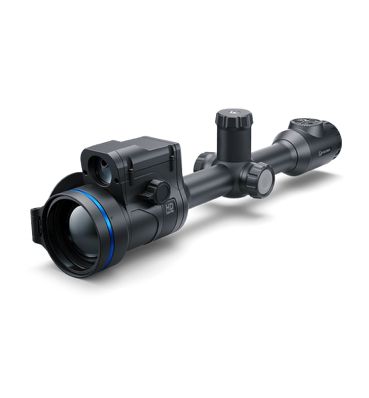

PULSAR THERMION 2 LRF XL60
SKU 840284902078
$9 519.97
In stock: 1 available
Product Details
Brand: Pulsar
The XL, or HD resolution thermal imaging sensor, combined with the 60 mm optics of the Pulsar Thermion 2 LRF XL60, make it the optimum choice for pest and predator control.
MAIN SPECIFICATIONS
Sensor
@ 12 µm 1024x768
Objective lens
F60/1.1
Magnification, x
2.5 - 20
FOV (HxV), degrees
11.7
FOV (HxV), m@100m
20.5
Detection range
2800 m
RETICLE
Click range, H/V, mm at 100m
3200/3200
Click value, H/V, mm at 100m
16 mm – 2.5х, 8 mm – 5х, 4 mm – 10х, 2 mm – 20х
Number of preloaded reticles
10
SENSOR
Type
uncooled
Resolution, pixels
1024x768
Pixel pitch, µm
12
Sensor NETD, mK
< 35
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
System NETD, mK
< 20
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
Frame rate, Hz
50
OPTICS
Objective lens
F60/1.1
Magnification, x
2.5 - 20
FOV (HxV), degrees
11.7
FOV (HxV), m@100m
20.5
Eye relief, mm
65
DISPLAY
Type
Micro-OLED
Resolution, pixels
2560x2560
LASER RANGEFINDER
Max. measuring range, m
800
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1280x960
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
BLUETOOTH
Wireless protocol
BLE 4.2
Wireless standard
IEEE 802.15.1
Frequency, Ghz
2,4
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
CONNECTIONS AND COMPATIBILITIES
Compatible mounts
Standard 30 mm rings
Supported application
Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber
12
Max. recoil power on rifled weapon (Eo), Joules
6000
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4900 mAh / DC 3.7 V (built-in)
Capacity, mAh
3200 (removable) + 4900 (built-in)
Operating time on battery pack, hat t=22°С
8
External power supply, V
5V (USB type-C)
WEIGHT & SIZE
Body material
Aluminum alloy
Dimensions, mm
442x84x98
Weight, kg
1.2
SKU
76575
Extreme image detail on high zoom
Variable magnification improves focus and overall object recognition at significant distances. The HD resolution models, the Thermion 2 LRF XL50 and Thermion 2 LRF XL60, maintain the highest level of image detail across the entire magnification range. The zoom changes either gradually in a 2x step or continuously for a customized FOV / magnification ratio for each specific scenario.
