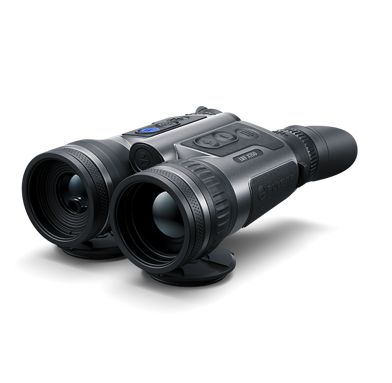

Name: PULSAR MERGER LRF XT50
Brand: Pulsar
SKU: 840284901989
Price: 10879.97 CAD
Availability: InStock

PULSAR MERGER LRF XT50

SKU 840284901989

$10 879.97

In stock: 1 available

Product Details

Brand: Pulsar

Premium model in range of Pulsar thermal imaging binoculars. Merger LRF XT50 offers extraordinary image detail thanks to its 1280x1024 pixel thermal sensor and new AMOLED 1280x960 microdisplay. Merger LRF XT50 provides wide field of view of 17.5 degrees and 2x-16x magnification.

MAIN SPECIFICATIONS

Sensor

@ 12 µm 1280x1024

Objective lens

F50 / 1.0

Magnification, x

2 – 16

FOV (HxV), degrees

17.5 х 14

FOV (HxV), m@100m

30.7 х 24

Diopter Adjustment, D

-5/+4

Detection range

2300 m

SENSOR

Type

uncooled

Resolution, pixels

1280x1024

Pixel pitch, µm

Sensor NETD, mK

read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">

< 40

System NETD, mK

< 20

Frame rate, Hz

OPTICS

Objective lens

F50 / 1.0

Magnification, x

2 – 16

FOV (HxV), degrees

17.5 х 14

FOV (HxV), m@100m

30.7 х 24

Diopter Adjustment, D

-5/+4

Interpupillary distance adjustment, mm

62 – 74

Eye relief, mm

DISPLAY

Type

AMOLED HD

Resolution, pixels

1280х960

LASER RANGEFINDER

Max. measuring range, m

1500

Measurement accuracy, m

± 1

Safety class for laser equipmentaccording to IEC 60825-1:2014

Wavelength, nm

905

VIDEO RECORDER

Video / photo resultion, pixel

1280х960

Video / photo format

.mp4 / .jpg

Build-in memory, GB

WI-FI

Wireless protocol

Wi-Fi

Wireless standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz

2.4 / 5

ENVIRONMENTAL CHARACTERISTICS

Degree of protectionIP code (IEC60529)

IPX7 (waterproof)

Operating temperature range, °С

-25 – +50

CONNECTIONS AND COMPATIBILITIES

Mount type

1/4" socket

Supported application

Stream Vision 2

POWER SUPPLY

Output voltage, V

3.7

Battery type

Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in)

Capacity, mAh

3200 (external) + 4000 (internal)

Operating time on battery pack, hat t=22°С

External power supply, V

5V (USB type-C)

WEIGHT & SIZE

Body material

Magnesium alloy

Dimensions, mm

197x140x72

Weight, kg

0.95 (batteries included)

SKU

77486

European made thermal imaging sensors

Merger LRF Series ensures unrivalled thermal imaging experience. For image capture Merger binoculars use professional-grade, European made thermal imaging sensors:

12 micron sensors 1280×1024 and 1024×768 offer high definition image quality.
17 micron sensors 640×480 and 384×288 provide extreme thermal sensitivity.

Detailed and sharp image on high zoom

Optical magnification of the unit can be increased by means of digital zoom. Even at the highest level of zoom image detail is sufficient for identifying the smallest object details. Advanced algorithms enhance image quality and help to achieve sharp and detailed image.

Wide field of view

Wide field of view simplifies scanning and spotting hot objects while minimizing effects of image shaking and raising situational awareness. Excellent image detail on base magnification combined with wide field of view ensure improved viewing comfort and scene perception.

Extra-long detection range

Powerful optics combined with professional thermal imaging sensors provide exceptional detection capabilities. Top Merger LRF units can detect hot objects at distances exceeding 2km.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Classic binocular design

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.

Comfortable viewing experience with both eyes

The Merger LRF binoculars’ optical design takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 63 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Combined dual battery system

The Merger LRF Series is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A s

PL77486

ingle charge guarantees long battery life.
