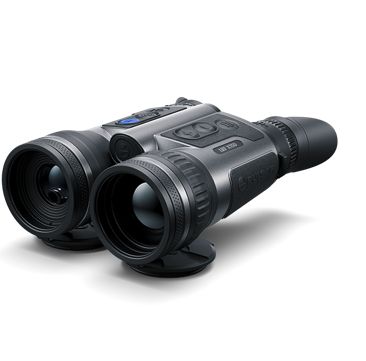

PULSAR MERGER LRF XP35
SKU 840284901545
$6 799.97
In stock: 1 available
Product Details
Brand: Pulsar
The Pulsar Merger LRF XP35 is the most compact model of the range, yet offers the widest in-class field of view – 17.8°. At the same time, it features great thermal sensitivity for extremely informative observation in the toughest conditions.
MAIN SPECIFICATIONS
Sensor
@ 17 µm 640x480
Objective lens
F35 / 1.0
Magnification, x
2 – 16
FOV (HxV), degrees
17.8 x 13.3
FOV (HxV), m@100m
31.3 x 23.4
Diopter Adjustment, D
-5/+4
Detection range
1350 m
SENSOR
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
17
Sensor NETD, mK
< 25
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
System NETD, mK
< 18
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
Frame rate, Hz
50
OPTICS
Objective lens
F35 / 1.0
Magnification, x
2 – 16
FOV (HxV), degrees
17.8 x 13.3
FOV (HxV), m@100m
31.3 x 23.4
Diopter Adjustment, D
-5/+4
Interpupillary distance adjustment, mm
63-74
Eye relief, mm
15
DISPLAY
Type
AMOLED HD
Resolution, pixels
1024x768
LASER RANGEFINDER
Max. measuring range, m
1000
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
16
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
CONNECTIONS AND COMPATIBILITIES
Mount type
1/4" socket
Supported application
Stream Vision 2
POWER SUPPLY
Output voltage, V
3.7
Battery type
Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in)
Capacity, mAh
3200 (removable) + 4000 (built-in)
Operating time on battery pack, hat t=22°С
9
External power supply, V
5V (USB type-C)
WEIGHT & SIZE
Body material
Magnesium alloy
Dimensions, mm
165x133x68
Weight, kg
0.83 (batteries included)
SKU
77484
European made thermal imaging sensors
Merger LRF Series ensures unrivalled thermal imaging experience. For image capture Merger binoculars use professional-grade, European made thermal imaging sensors:
- 12 micron sensors 1280×1024 and 1024×768 offer high definition image quality.
- 17 micron sensors 640×480 and 384×288 provide extreme thermal sensitivity.
Detailed and sharp image on high zoom
Optical magnification of the unit can be increased by means of digital zoom. Even at the highest level of zoom image detail is sufficient for identifying the smallest object details. Advanced algorithms enhance image quality and help to achieve sharp and detailed image.
Wide field of view
Wide field of view simplifies scanning and spotting hot objects while minimizing effects of image shaking and raising situational awareness. Excellent image detail on base magnification combined with wide field of view ensure improved viewing comfort and scene perception.
Extra-long detection range
Powerful optics combined with professional thermal imaging sensors provide exceptional detection capabilities. Top Merger LRF units can detect hot objects at distances exceeding 2km.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Classic binocular design
Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.
Comfortable viewing experience with both eyes
The Merger LRF binoculars’ optical design takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 63 to 74 mm in accordance with the individual characteristics of a particular user.
Precise laser rangefinder
Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.
Combined dual battery system
The Merger LRF Series is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life.
