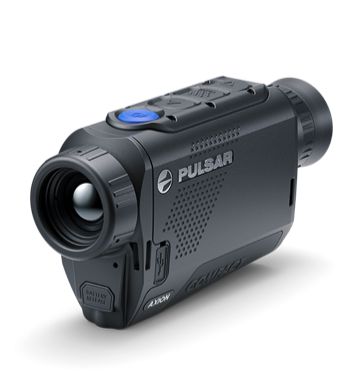

PULSAR AXION COMPACT XQ19
SKU 840284903938
$1 359.97
In stock: 1 available
Product Details
Brand: Pulsar
The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
MAIN SPECIFICATIONS
Sensor
@ 17 µm 384x288
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Detection range
750
SENSOR
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
Sensor NETD, mK
< 25
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
System NETD, mK
< 18
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
Frame rate, Hz
50
OPTICS
Objective lens
F19 / 1.0
Magnification, x
1.5 - 6 (x4 digital zoom)
FOV (HxV), degrees
19.5 x 12.3
FOV (HxV), m@100m
34.7 x 21.5
Diopter Adjustment, D
+4/-5
Eye relief, mm
14
DISPLAY
Type
AMOLED
Resolution, pixels
640x400
RANGE PERFORMANCE
Detection range, m
750
VIDEO RECORDER
Video / photo resultion, pixel
960х600
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
CONNECTIONS AND COMPATIBILITIES
Mount type
1/4" socket
Supported application
Stream Vision 2
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
APS 3 Li-ion Battery Pack
Capacity, mAh
3200
Operating time on battery pack, hat t=22°С
8
External power supply, V
5 (USB Type C)
WEIGHT & SIZE
Body material
Aluminum alloy
Dimensions, mm
134.5х38х71
Weight, kg
0.25 (without battery)
SKU
77517
European made thermal imaging sensors
Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions.
- 640×480/12 micron sensor provides reliable detection range for spotting heat signatures in most field scenarios.
- 384×288/17 micron sensor ensures clear and consistent images even in low-contrast or poor weather conditions.
Pocket-sized dimensions and light weight
Axion monoculars have a space-saving and pocket-sized design and weights less than 300 grams, which makes them the best thermal imaging monoculars for those who look for a truly compact option, both in hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.
Wide field of view for easy scanning
Axion Compact monoculars have wide field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.
Photo and video recording
The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. Internal memory of the unit ensures many hours of recorded video and tons of photos.
Rugged magnesium alloy housing
Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.
Sensitivity amplification levels
3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.
