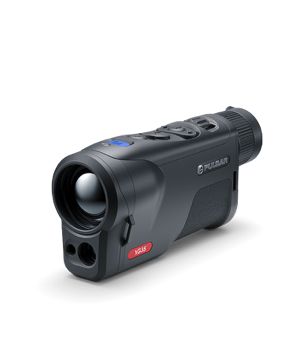

ORYX LRF XG35
SKU 840284902061
$3 809.97
In stock: 1 available
Product Details
Brand: Pulsar
Built for long and tough hunts, the Pulsar Oryx LRF XG35 is compact, delivers an extra-high detail thermal image, and comes with a next-gen rangefinder.
MAIN SPECIFICATIONS
Sensor
@ 12 µm 640x480
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV)degrees / m@100m
10.4
FOV (HxV), degrees
12.5×9.4
FOV (HxV), m@100m
21.9x12.5°
Detection range
1800 m
SENSOR
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
Sensor NETD, mK
< 40
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
System NETD, mK
< 20
read here." aria-expanded="false" style="border: 0px solid rgb(229, 231, 235); box-sizing: border-box; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: #3b82f680; --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-space-x-reverse: 0; margin-left: calc(.25rem*(1 - var(--tw-space-x-reverse))); margin-right: calc(.25rem*var(--tw-space-x-reverse));">
Frame rate, Hz
50
OPTICS
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV)degrees / m@100m
10.4
FOV (HxV), degrees
12.5×9.4
FOV (HxV), m@100m
21.9x12.5°
Eye relief, mm
14
DISPLAY
Type
AMOLED HD
Resolution, pixels
1024x768
RANGE PERFORMANCE
Detection range, m
1800 m
LASER RANGEFINDER
Max. measuring range, m
1500
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IP67
Operating temperature range, °С
-25 – +40
CONNECTIONS AND COMPATIBILITIES
Mount type
1/4" socket
Supported application
Stream Vision 2
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V (removable) & Li-Ion Battery Pack / 3200 mAh / DC 3.7 V (built-in)
Capacity, mAh
4900
Operating time on battery pack, hat t=22°С
12 (built-in + removable)
External power supply, V
5V; 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
Body material
Magnesium alloy
Dimensions, mm
179х52х77
Weight, kg
0.5
SKU
77504
Powerful 1500 m laser rangefinder
The Oryx LRF is equipped with a powerful and precise built-in laser rangefinder capable of delivering accurate range measurements up to 1500 meters, even in complete darkness.
With two operating modes — scanning for continuous updates and single measurement for pinpoint accuracy — the rangefinder delivers versatile performance. It offers readings in meters or yards, adapting to your preferences and needs.
Dual battery system: up to 12 h. of operating time
Oryx LRF monocular is equipped with a dual battery system, combining an integrated internal battery and a removable external battery for uninterrupted power. Both batteries have separate charge indicators displayed on the unit’s screen, allowing for easy monitoring. The external battery is hot-swappable, enabling quick, seamless replacement in seconds without disrupting use.
Both batteries support power delivery and can be quickly recharged via a USB-C port for maximum convenience. This efficient system ensures reliable performance, making the Oryx LRF ideal for extended hunts and challenging conditions.
Durable rugged housing built for tough conditions
The Oryx LRF is designed to meet the rigors of long, challenging hunts. Its magnesium alloy housing offers outstanding durability — it withstands impacts, moisture, mud and extreme temperatures while delivering smooth and reliable performance. Lightweight yet resilient, this material enhances portability and ensures efficient heat dissipation, while optimizing the device’s performance during extended observation sessions.
Optimized for both left and right-hand use
The Oryx line features an ambidextrous, symmetrical housing design, ensuring comfortable handling with either hand. The belt-clip and hand strap can be attached to either side of the housing allowing users to customize the device to their preferences for added versatility.
Sensitivity enhancement technology
A proprietary set of advanced algorithms and optimized electronic components power a groundbreaking approach to thermal image processing. This innovation boosts signal clarity and minimizes noise, delivering exceptional image quality and detail in every situation.
IP67 protection rating
The Oryx LRF is the first Pulsar device with an IP67 protection rating, offering outstanding durability. Engineered to perform flawlessly, it can withstand submersion in up to 1 meter of water for up to 30 minutes and is fully protected against dust and contact with objects larger than 1 mm, ensuring reliable performance in the harshest conditions.
Extra-high detail thermal image
The Oryx LRF delivers high-quality thermal imaging with multiple color palettes and remarkable detail. Its advanced video processing platform ensures precise object rendering, capturing even the finest nuances. Paired with optimized brightness and contrast settings, the device offers exceptional clarity and sharpness for an unparalleled viewing experience.
Haptic feedback
For a more intuitive and tactile experience of the Oryx LRF, activate the haptic feedback function in the device’s short menu. The unit responds with short vibrations when pressing the control buttons.
Image stabilization
Oryx LRF features electronic image stabilization, enhancing image sharpness and reducing artefacts caused by shaking hands. It minimizes motion blur, ensuring more comfortable observation of distant objects.
Stream Vision Ballistics App Support
For the first time, Oryx LRF users can pair their device with the Stream Vision Ballistics app via Bluetooth. Once connected, users can activate ballistics, select profiles, and choose preferred calculator units – all from their smartphone. This integration provides reliable ballistic data for more precise, well-informed shots.
