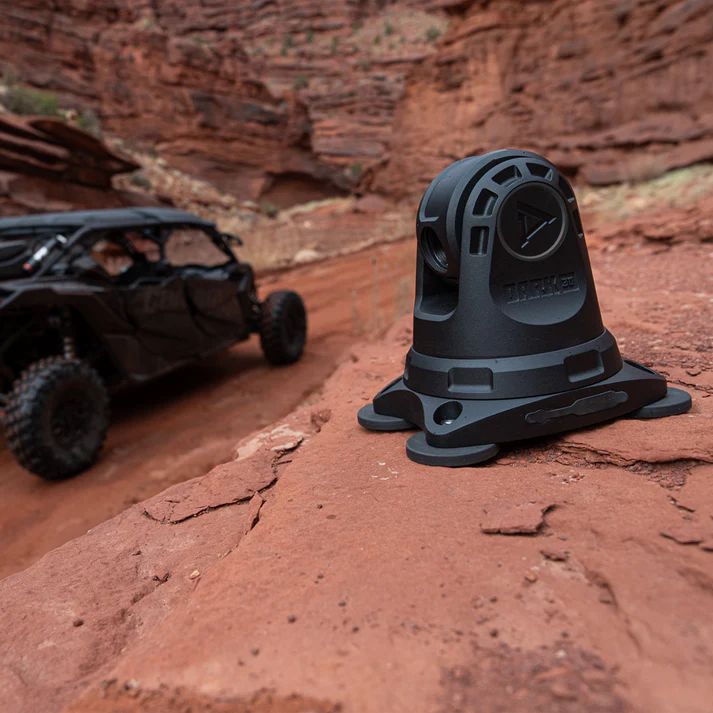

Dark30 Defiance LS - 384 PTZ Thermal Camera
SKU DT27001
$4 284.97
In stock: 1 available
Product Details
Brand: Dark 30
Versatile Thermal Palettes
The Dark 30 Defiance LS PTZ gives you the flexibility to tailor your camera’s display to the mission at hand. With five thermal imaging palettes at your fingertips, you can switch between white hot and black hot for easy hotspot detection or easily identify the minute features of distant targets with rainbow, magenta, or green hot modes. Whether you're scouting for distant targets or tracking movement in rough terrain, the Defiance ensures you're seeing exactly what you need to.
The Dark 30 Defiance LS 384 PTZ is a heavy duty thermal imaging unit purpose-built for vehicle mounting. Whether you’re patrolling fence lines, tracking predators, or rolling deep into ranch country after dark, this system gives you the eyes you need when it matters most.
Outfitted with a 384x288 thermal sensor and precision-engineered PTZ control, the Defiance LS sees heat through brush, fog, and pitch darkness—while you stay behind the wheel. With app-based control, onboard recording, and ruggedized construction, this rugged vehicle-mounted camera is a turn-key thermal solution for trucks, UTVs, and off-road platforms.
Features
- Variable Speed Remote Control
- Sleep Mode
- Return To Home Function
- 384x288 Thermal Imaging Sensor
- Infinite 360° Panning
- Low Latency HDMI compatible Wired Screen
- App Control on the Dark 30 App
- Versatile Mounting Options:
Permanent bolts, suction cups, or 100lb pull magnets - Water Resistant
Accessories
- Base Kit
- Remote
- 10.1" Screen
GENERAL |
|
| Water Resistance | IP66 |
| Pan angle | Continuous 360° |
| Tilt angle | Straight downward to 45 degrees above horizontal |
| Body Material | Aluminum |
| Width | 6.65” |
| Depth | 7.68“ |
| Height | 7.8” |
| Weight | 111 oz |
| Operating Temperature Range °F | -4°F x 122°F |
| Ports | 1 TF card slot, 2 HDMI ports, 2 DC ports |
| Display type | LCD |
| Screen Size | 10.1” |
POWER |
|
| Power Supply | 12VDC |
| Camera Amperage @12V DC | 750mA |
| Display Amperage @ 12VDC | 320mA |
| Adaptor Connection with both Camera and Display | 1200mA |
SENSOR |
|
| Device Technology | Thermal Imaging |
| Sensor resolution, pixels | 384x288 |
| Frame rate | 60 fps |
| Pixel size | 17 micron |
| Spectral range | 8 - 14μm |
| Detector NETD | <40 mK |
| Color palettes | 5 |
| Detection range yd | 1250 yds |
OPTICS |
|
| Lens material | Germanium |
| F/# NUMBER (lens) | 1 |
| Lens diameter | 30 mm |
| Focal length | 30 mm |
| Digital zoom | 1-8x |
| Magnification | n/a |
| Field of View Horizontal | 20° |
| Field of View Vertical | 15° |
| Field of View Diagonal | 25° |
